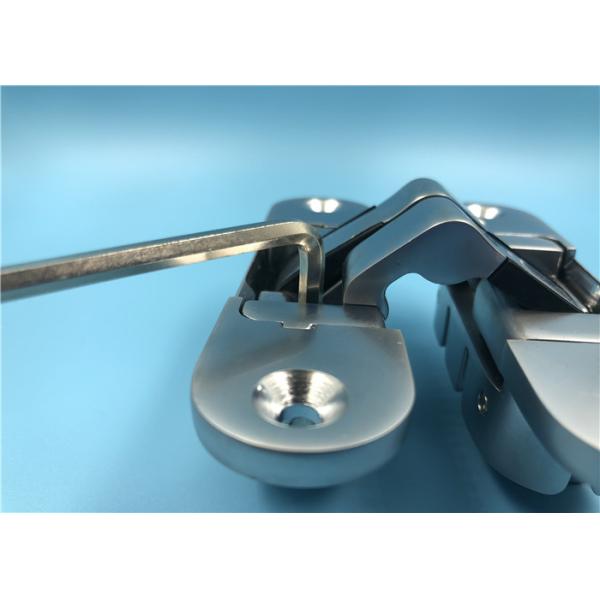

Flexible 3d Adjustable Door Hinges , Invisible Hinges For Cabinet Doors

Brand Name : JKL

Model Number : BG001

Certification : SGS,CNAS

Place of Origin : Jiangmen, Guangdong

MOQ : 100 pcs

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, Paypal, L/C

Supply Ability : 50,000 pcs/month

Delivery Time : 20-30 days.(A small amount of stock all the time)

Packaging Details : 1 pc/poly bag, 2 pcs/inner white box, 20 pcs/carton, CTN Size: 35X28.5X9.5CM, G.W./CTN: 10.50 kgs

Name : 3d Adjustable Door Hinges

Advantages : Adjustable without disassemblying door leaves,Drilling to be invisible installation,Concealed for a complete flush look,high quality,durable and silent

Weight loading : 80 kgs/3 pcs

Size : 30x110mm

Material : Zinc alloy body, SS 304 connecting arms

SS 304 Arm : Yes

Open degree : 180°

Min door thickness : 40mm

Contact Now

Flexible 3d Adjustable Door Hinges , Invisible Hinges For Cabinet Doors

3d Adjustable Door Hinges Application

3d Adjustable Door Hinges suitable for security door, entrance door, antithetic door, anti-fire door, wooden door

and interior door wear resistant discs without lubrication oil rotate flexibly and test for

over 200,000 cycles without abrasion disregard the left installation and right installation.

3D Adjustable Invisible Hinge Details:

Type	Solid wooden door soss type concealed hinge
Model number	BG001
Size	30x110mm
Intermediate gap	16mm
opening angle	180 degree
min. door thickness	40mm
max. door weight	80kg/3 pcs
Heavy duty	Yes, this hinge is installed by SS casting 304 arms
material	zinc alloy, stainless steel #304
connector	SS 304
screws	stainless steel #304
coating	satin nickel, satin chrome, pearl nickel, pearl chrome, gold plated, antique bronze and antique copper or as your requirement

Product features

completely concealed hinge system

for timber, steel or aluminium frames

for unrebated residential and heavy-duty doors

maintenance-free slide bearings

with comfortable 3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,0 mm)

sideways closed hinge body for a homogeneous mortise appearance

Advantages:

concealed hinge
Brand-name Parts
Experienced Staff
Product Features
High reputation
Prompt Delivery
Small Orders Accepted
Guarantee/Warranty

Design meets function. SG enables the optimal integration of unrebated doors in straight line and surface flush room structures.

The completely concealed hinge system SG accepts load capacities of up to 300 kg, enables an opening angle of 180 degrees and can be used on timber, steel and aluminium frames.

The three-dimensional adjustability and maintenance-free slide bearing technology of SG are used for high-quality residential doors and functional heavy-duty doors.

What equipment does JinKaiLi have?

Machine Name	Quantity
Pneumatic punch 2000T	1
Punching machine	14
Zinc alloy die-casting machine	2
Punching machine 160T	1
Punching machine 120T	1
Automatic tapping machine	4
Milling machine	3
Grinding machine	4
Lathe	1
CNC machine	2
Large type drill machine	1
Drilling tapping machine	10
Polishing cleaning equipment	30
Automatic packaging machine	2
Hydraulic riveting machine	2
Welding machine	4
Surface testing machine	2
Performance test machine	3

3d Adjustable Door Hinges details

Flexible 3d Adjustable Door Hinges , Invisible Hinges For Cabinet Doors

Antique Copper Adjustable Concealed Hinges packing
